Duct Free Systems

• Model Family: 38MPRA
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 42 SEER2
• Efficiency EER: Up to 15 EER
• Efficiency HSPF: Up to 15.0 HSPF2
• Energy Star Rated: ENERGY STAR® certified
• Refrigerant Type: Puron®
• Sound Level: As low as 55.5 DBA
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• 100% Heating Capacity at 0° F (-17° C)
• 100% Cooling capacity at -22° F (-30° C) without additional kit
• Up to 75% of Heating Capacity at -22° F (-30° C)
• Built-in basepan heater
• Auto-restart function
• Refrigerant leakage detection
• Aluminum Golden Hydrophilic pre-coated fins
• Heavy-gauge, galvanized steel construction
• Primed and coated with a 100% coverage, baked-enamel finish in white

• Model Family: 38MAR
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 25.0 SEER2
• Efficiency EER: Up to 15.0 EER
• Efficiency HSPF: Up to 12.0 HSPF2
• Energy Star Rated: ENERGY STAR®
• Refrigerant Type: Puron®
• Sound Level: As low as 52.5 DBA
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Built-in basepan heater
• Built100% Heating Capacity at 5°F (-15°C)
• BuiltPiping length 82-164 ft. depending on unit capacity and system configuration
• BuiltRefrigerant leakage detection
• BuiltCondenser high-temperature protection
• BuiltDurable, heavy gauge galvanized steel Paint Baked-on, powder paint

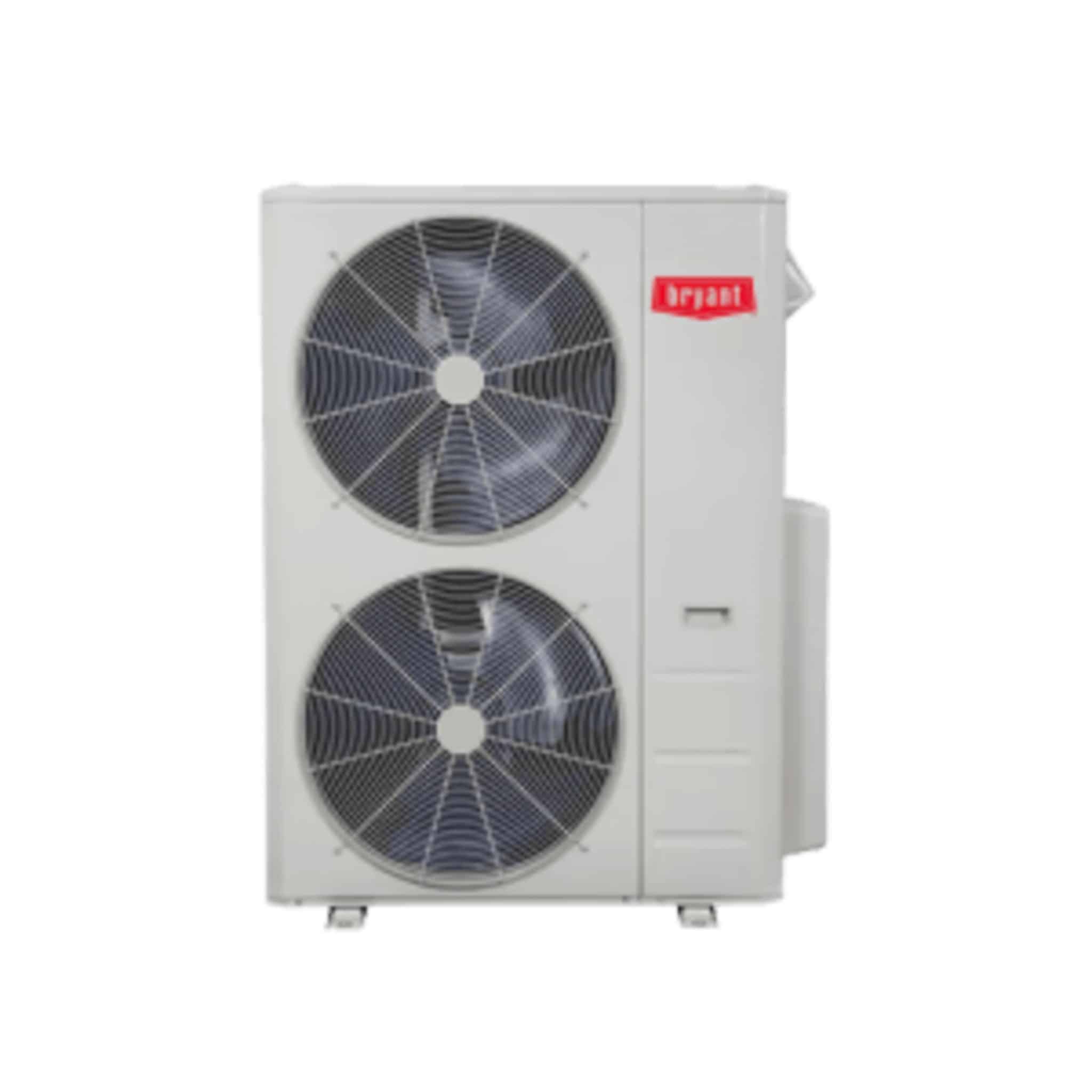

• Model Family: 38MGR
• Purpose: Heat & Cool
• Zone Capability: Multi Zone
• Efficiency SEER: Up to 23.8 SEER2
• Efficiency EER: Up to 13.5 EER
• Efficiency HSPF: Up to 10.5 HSPF2
• Energy Star Rated: ENERGY STAR®
• Refrigerant Type: Puron®
• Sound Level: As low as 62 DBA
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Built-in basepan heater
• Condenser high-temperature protection
• Refrigerant leakage detection

• Model Family: 38MHRBQ
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 19.8 SEER2
• Efficiency EER: Up to 11.2 EER
• Efficiency HSPF: Up to 10.6 HSPF2
• Energy Star Rated: N/A
• Refrigerant Type: Puron®
• Sound Level: As low as 60.2 DBA
• Compressor: Rotary Inverter
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Built-in basepan heater
• Auto-restart function
• Refrigerant leakage detection
• Aluminum Golden Hydrophilic pre-coated fins

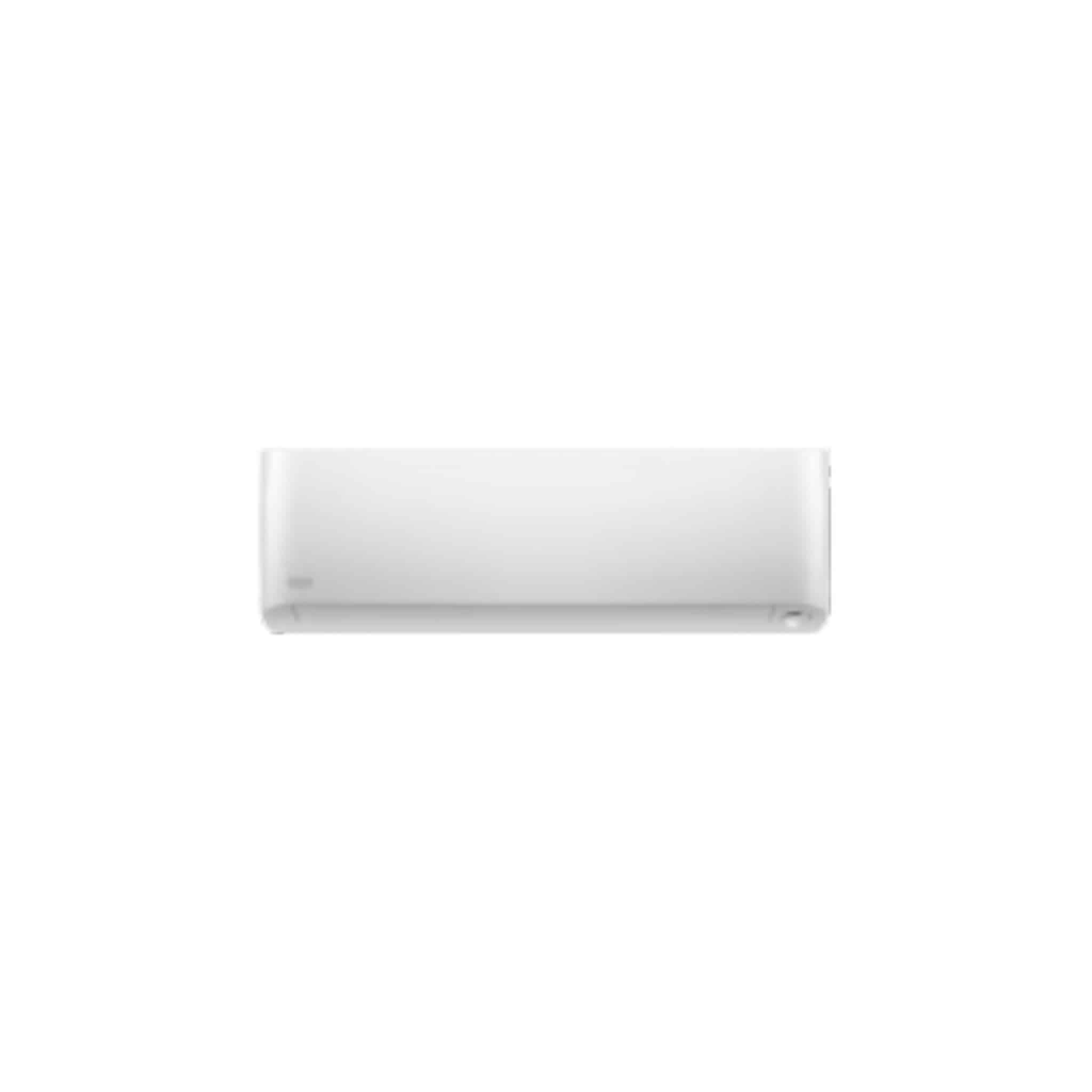

• Model Family: 619PHA
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 42.0 SEER
• Efficiency EER: Up to 15.0 EER
• Efficiency HSPF: Up to 15.0 HSPF
• Matching Outdoor Unit: Single-Zone: 38MPRA
• Matching Outdoor Unit: Multi-Zone: 38MGR
• Energy Star Rated: ENERGY STAR®
• Refrigerant Type: Puron®
• Number of Fan Speeds: Fully modulating fan speeds
• Sound Level: As low as 29 dB
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Up-down / right-left louver control (fixed or swing)
• Relative Humidity Sensor
• Intelligent Eye (occupancy sensor)
• Built-in Wi-Fi®
• ECO Mode
• Aluminum Golden Hydrophilic pre-coated fins
• Modes: Cool, Heat, Dry, Fan, Auto
• Turbo Mode

• Model Family: 619PB
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 25.0 SEER
• Efficiency EER: Up to 14.5 EER
• Efficiency HSPF: Up to 12.0 HSPF
• Matching Outdoor Unit: Single-Zone: 38*MAR
• Matching Outdoor Unit: Multi-Zone: 38*MGR
• Energy Star Rated: ENERGY STAR® Some sizes qualified
• Refrigerant Type: Puron®
• Number of Fan Speeds: 4 fan speeds
• Sound Level: As low as 27 DBA
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Capacity sizes ranging from 9 to 30 BTUs
• Line lengths 82-164 ft. depending on unit capacity
• Base pan heater
• Auto louver mode
• 46°F heating mode (heating setback)
• Turbo mode
• Sleep mode
• White flat panel indoor unit

• Model Family: 40MHHQ
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 17 SEER
• Efficiency EER: Up to 11 EER
• Efficiency HSPF: Up to 9 HSPF
• Matching Outdoor Unit: Single-Zone: 38MHRQ
• Matching Outdoor Unit: Multi-Zone: N/A
• Energy Star Rated: N/A
• Refrigerant Type: R-410A
• Number of Fan Speeds: Four fan speeds
• Sound Level: As low as 27 DBA
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Auto-restart function
• Turbo Mode
• Sleep Mode
• Follow Me (senses temperature at handheld remote)
• Up-down louver control (fixed or swing)
• Filter is removable from the top
• Improved serviceability with easy access to fan and electrical connections
• Aluminum Blue Hydrophilic pre-coated fins

• Model Family: 38MHRBC
• Purpose: Cooling
• Zone Capability: Single Stage
• Efficiency SEER: Up to 19.0 SEER
• Efficiency EER: Up to 11.2 EER
• Efficiency HSPF: Up to 15.0 HSPF
• Energy Star Rated: N/A
• Refrigerant Type: R-410A
• Sound Level: As low as 50.5 dB
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty upon registration
• Factory Warranty Compressor: 10-year compressor limited warranty upon registration

Manufacturer’s Stated Benefits:

• Sizes: 12 / 18 / 24
• Available in 115V and 208/230V
• Refrigerant leakage detection
• Auto-restart function
• Aluminum Golden Hydrophilic pre-coated fins

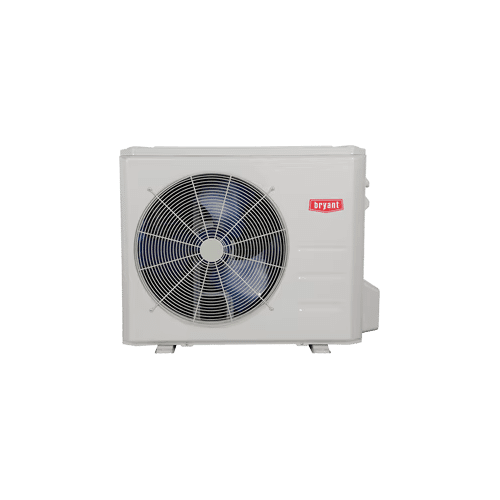

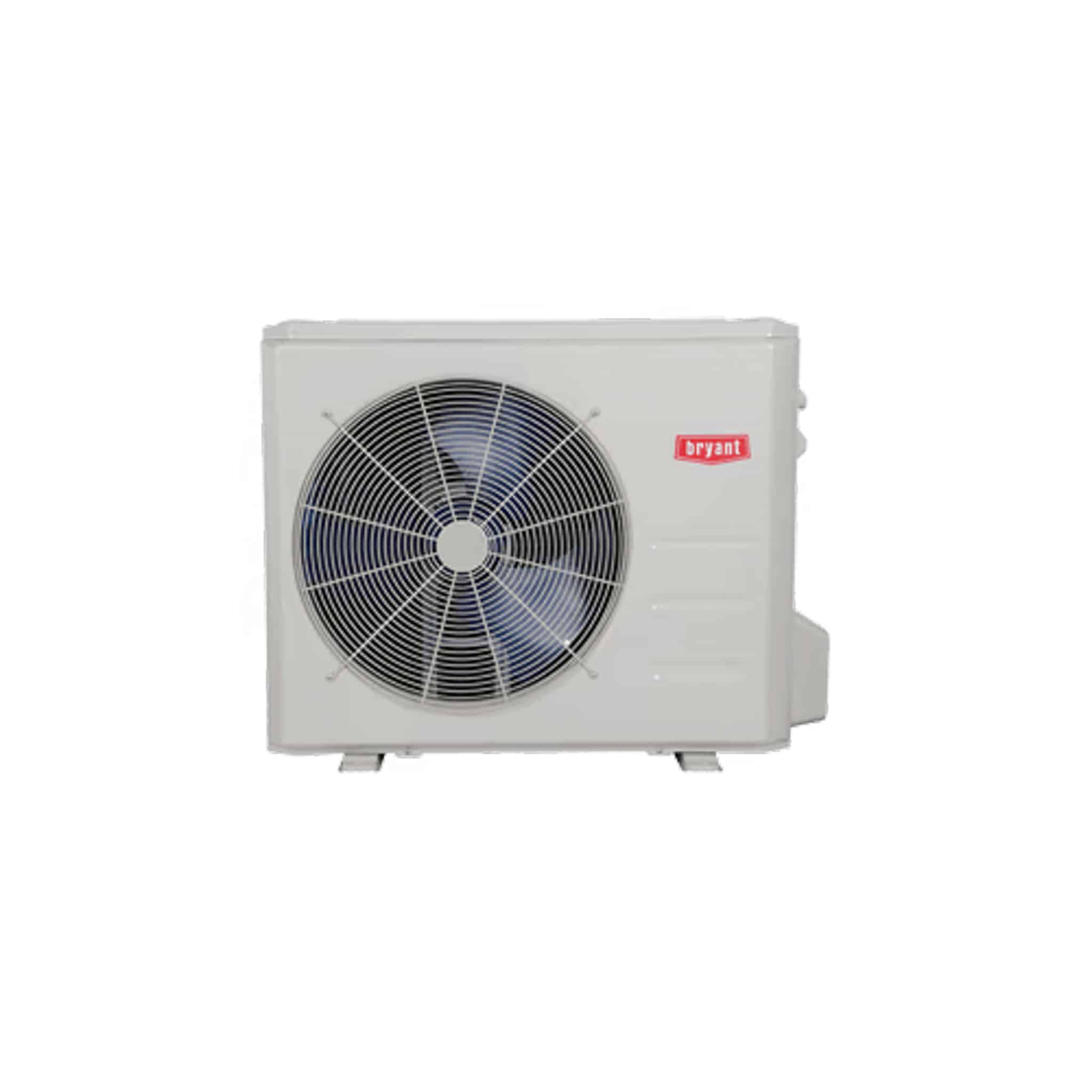

• Model Family: 38MHRC
• Purpose: Cooling
• Zone Capability: Single Stage
• Efficiency SEER: Up to 17.5 SEER
• Efficiency EER: Up to 11.6 EER
• Energy Star Rated: N/A
• Refrigerant Type: Puron®
• Sound Level: As low as 50.5 dB
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Sizes: 12 / 18 / 24
• Available in 115V and 208/230V
• Refrigerant leakage detection
• Auto-restart function
• Aluminum Golden Hydrophilic pre-coated fins

• Model Family: 40MBCQ
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 25.0 SEER
• Efficiency EER: Up to 15.0 EER
• Efficiency HSPF: Up to 12.0 HSPF
• Matching Outdoor Unit: Single-Zone: 38MAR and 38MBR
• Matching Outdoor Unit: Multi-Zone: 38MGR
• Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
• Refrigerant Type: Puron®
• Number of Fan Speeds: Three fan speeds
• Sound Level: As low as 34 DBA
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• Auto-restart function
• Louver control (fixed or swing)
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Built-in condensate lift pump
• Aluminum Blue Hydrophilic pre-coated fins

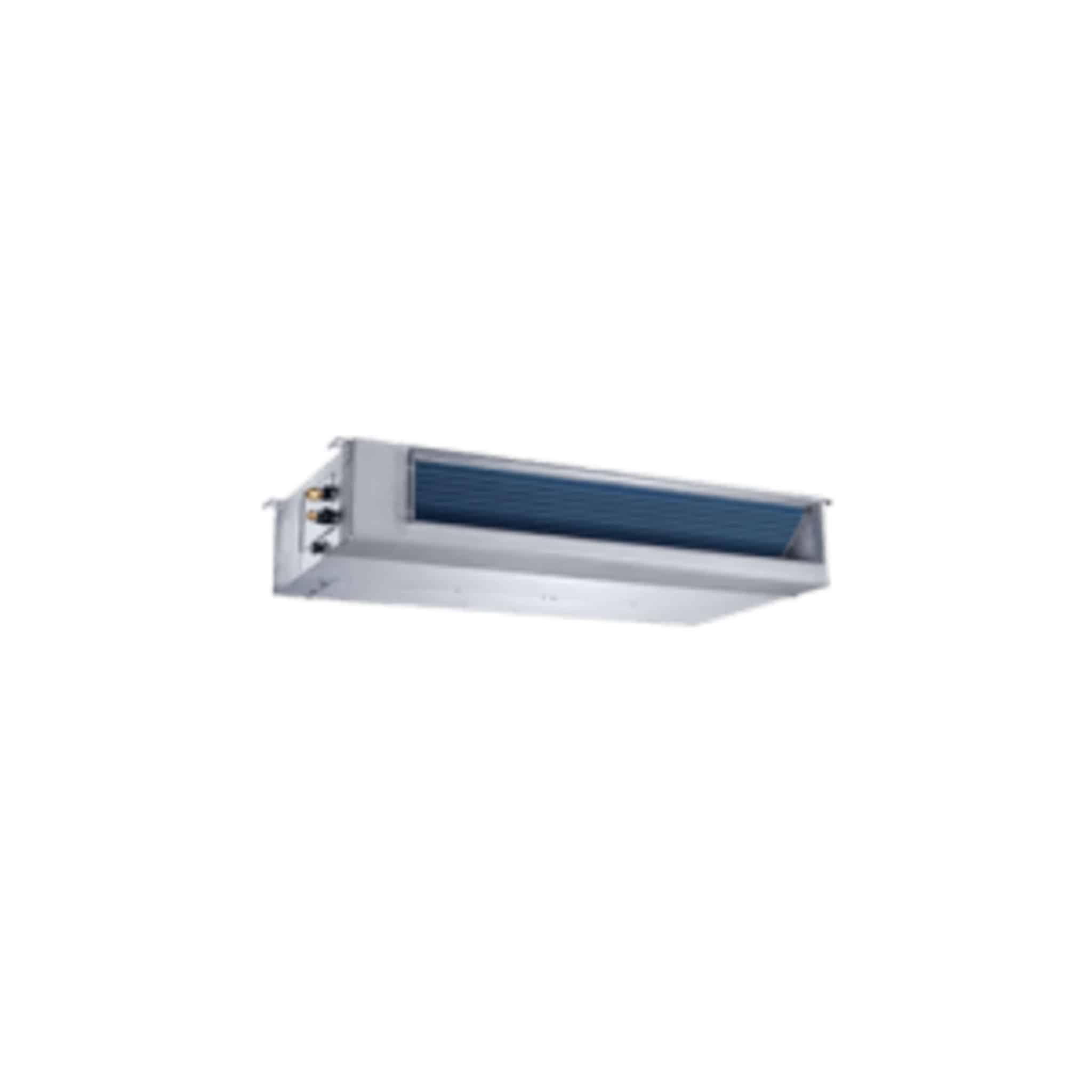

• Model Family: 40MBDQ
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 25.0 SEER
• Efficiency EER: Up to 15.0 EER
• Efficiency HSPF: Up to 12.0 HSPF
• Matching Outdoor Unit: Single-Zone: 38MAR and 38MBR
• Matching Outdoor Unit: Multi-Zone: 38MGR
• Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
• Refrigerant Type: Puron®
• Number of Fan Speeds: 3 fan speeds
• Sound Level: As low as 35 DBA
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• Rear or bottom return
• Outside air intake
• Built-in condensate lift pump
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Aluminum Blue Hydrophilic pre-coated fins

• Model Family: 40MBFQ
• Purpose: Heat & Cool
• Zone Capability: Single Zone and Multizone
• Efficiency SEER: Up to 25.0 SEER
• Efficiency EER: Up to 15.0 EER
• Efficiency HSPF: Up to 12.0 HSPF
• Matching Outdoor Unit: Single-Zone: 38MAR and 38MBR
• Matching Outdoor Unit: Multi-Zone: 38MGR
• Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
• Refrigerant Type: Puron®
• Number of Fan Speeds: 3 fan speeds
• Sound Level: As low as 34 DBA
• Wireless Remote: yes
• Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Auto-restart function
• Louver control (fixed or swing)
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Aluminum Blue Hydrophilic pre-coated fins

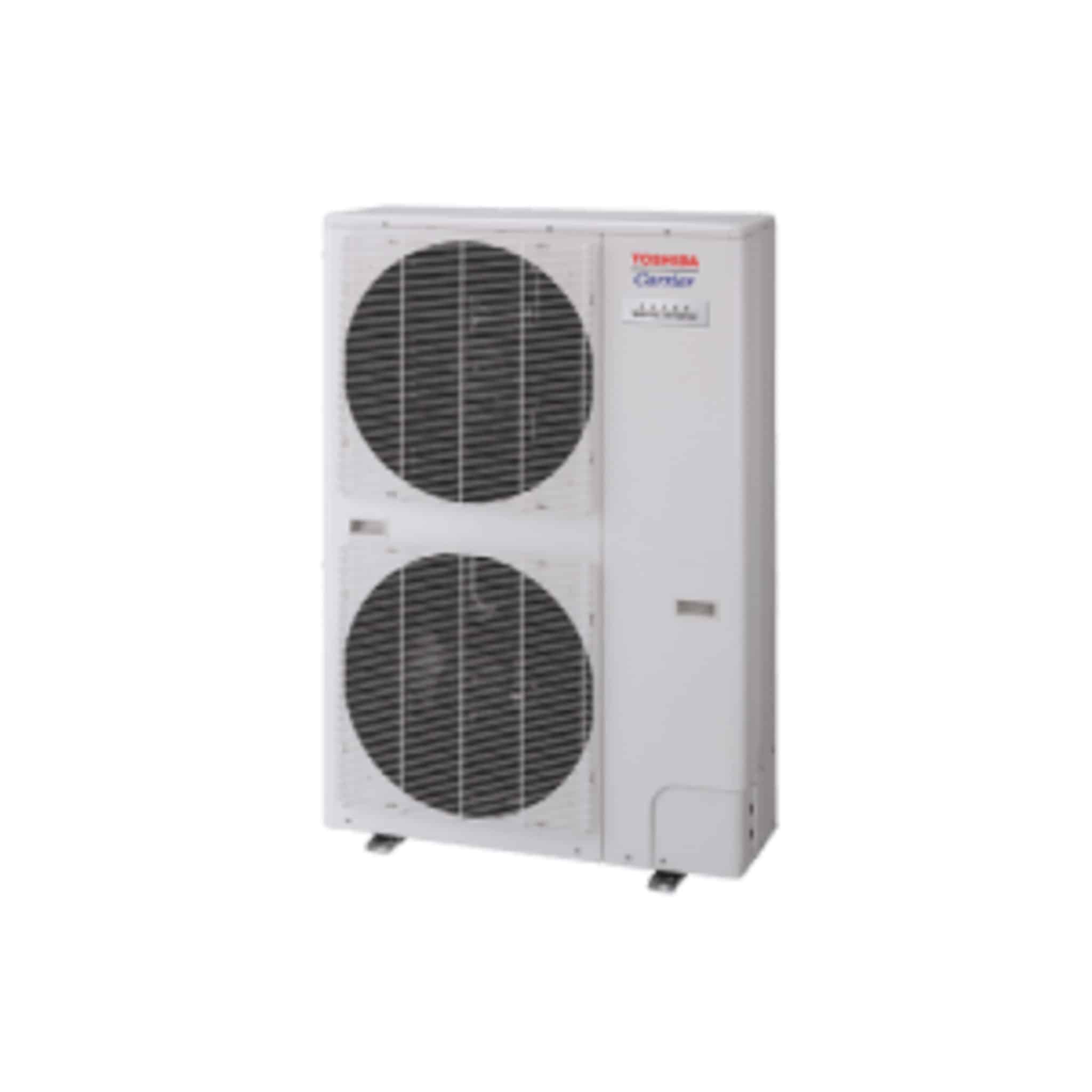

• Model Family: RAVAT
• Purpose: Heating & Cooling
• Zone Capability: Multi Zone
• Efficiency SEER: Up to 21.0 SEER
• Efficiency EER: Up to 14.0 EER
• Efficiency HSPF: Up to 11.9 HSPF
• Energy Star Rated: Select Models ENERGY STAR® certified
• Refrigerant Type: Puron®
• Sound Level: As low as 48 DBA
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• System diagnostics
• System protecting high pressure and loss of charge switches
• Sound reduction: isolated compressor with acoustic wrap
• Heavy-gauge, pre-coated galvanized steel construction
• Coated with a 100% coverage, baked-enamel finish in white

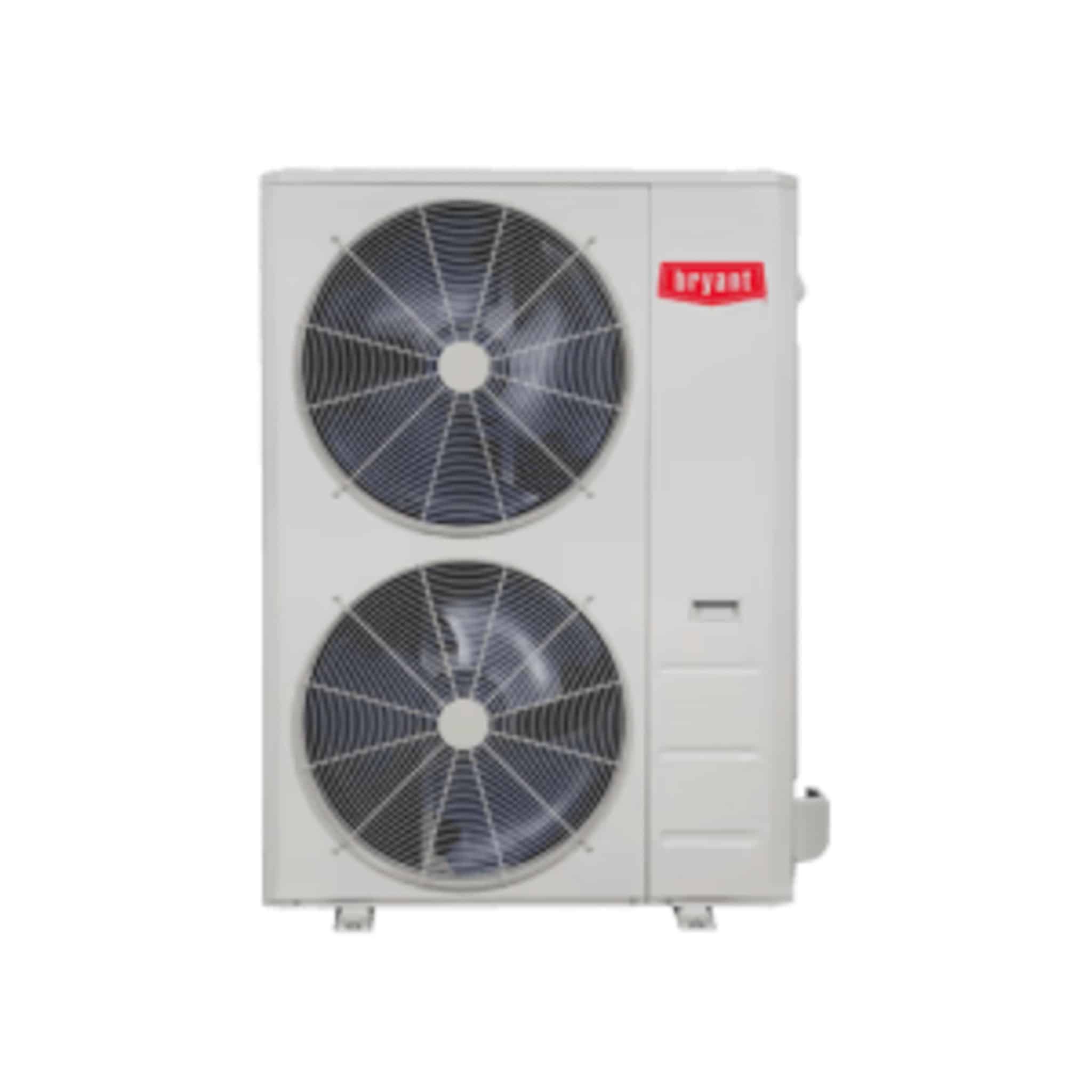

• Model Family: 38MBR
• Purpose: Heating & Cooling
• Zone Capability: Multi Zone
• Efficiency SEER: Up to 17.4 SEER
• Efficiency EER: Up to 10.5 EER
• Energy Star Rated: N/A
• Refrigerant Type: Puron®
• Sound Level: As low as 62.5 DBA
• Compressor: Inverter Compressor
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
• Factory Warranty Compressor: 10-year compressor limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• System diagnostics
• System protecting high pressure and loss of charge switches
• Sound reduction: isolated compressor with acoustic wrap
• Heavy-gauge, pre-coated galvanized steel construction
• Coated with a 100% coverage, baked-enamel finish in white

• Model Family: RAVKR
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 21.0 SEER2
• Efficiency EER: Up to 14.0 EER
• Efficiency HSPF: Up to 11.9 HSPF2
• Matching Outdoor Unit: Single-Zone: RAVAT
• Matching Outdoor Unit: Multi-Zone: N/A
• Energy Star Rated: ENERGY STAR® certified based on outdoor unit pairing
• Refrigerant Type: Puron®
• Number of Fan Speeds: Three indoor unit fan speeds
• Sound Level: As low as 38 DBA
• Wireless Remote: Yes
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Motorized louver allows fixed or oscillating motion
• Turbo Mode
• One touch memory
• Sleep Mode
• Washable filter with on-unit filter maintenance indicator
• System diagnostics
• Up to 24-hour start/stop timer
• Indoor coil freeze protection
• Modern, flat panel indoor unit in white

• Model Family: RAVUT
• Purpose: Heat & Cool
• Zone Capability: Multi Zone
• Efficiency SEER: Up to 21.0 SEER2
• Efficiency EER: Up to 14.0 EER
• Efficiency HSPF: Up to 11.9 HSPF2
• Matching Outdoor Unit: Single-Zone: RAVAT
• Matching Outdoor Unit: Multi-Zone: N/A
• Energy Star Rated: Select sizes ENERGY STAR® certified
• Refrigerant Type: Puron®
• Number of Fan Speeds: Three indoor unit fan speeds
• Sound Level: As low as 32 DBA
• Wireless Remote: Yes
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Built-in condensate pump
• Branch duct capability
• Outside air intake
• Sleep Mode
• Power Saving Mode
• Washable filter with on-unit filter maintenance indicator
• System diagnostics
• Indoor unit features a modern, flush-mount, white grille

• Model Family: RAVCT
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 21.0 SEER2
• Efficiency EER: Up to 14.0 EER
• Efficiency HSPF: Up to 11.9 HSPF2
• Matching Outdoor Unit: Single-Zone: RAVAT
• Matching Outdoor Unit: Multi-Zone: N/A
• Energy Star Rated: Select sizes ENERGY STAR® certified
• Refrigerant Type: Puron®
• Number of Fan Speeds: Three indoor unit fan speeds
• Sound Level: As low as 34 DBA
• Wireless Remote: Yes
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Power Saving Mode
• Auto Louver Mode
• Outside air intake
• Sleep Mode
• Filter maintenance indicator
• System diagnostics
• Indoor coil freeze protection
• Modern, ceiling hugging unit in white

• Model Family: RAVBT
• Purpose: Heat & Cool
• Zone Capability: Single Zone
• Efficiency SEER: Up to 21.0 SEER2
• Efficiency EER: Up to 14.0 EER
• Efficiency HSPF: Up to 11.9 HSPF2
• Matching Outdoor Unit: Single-Zone: RAVAT
• Matching Outdoor Unit: Multi-Zone: N/A
• Energy Star Rated: Select sizes ENERGY STAR® certified
• Refrigerant Type: Puron®
• Number of Fan Speeds: Three fan speeds
• Sound Level: As low as 30 DBA
• Wireless Remote: Yes
• Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration

Manufacturer’s Stated Benefits:

• Modes: Cool, Heat, Dry, Fan, Auto
• Rear or bottom return
• Outside air intake
• Built-in condensate lift pump
• Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.
